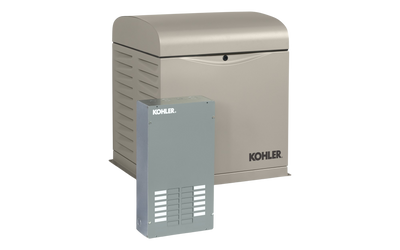

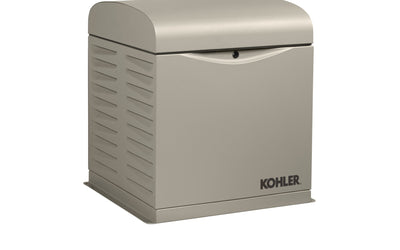

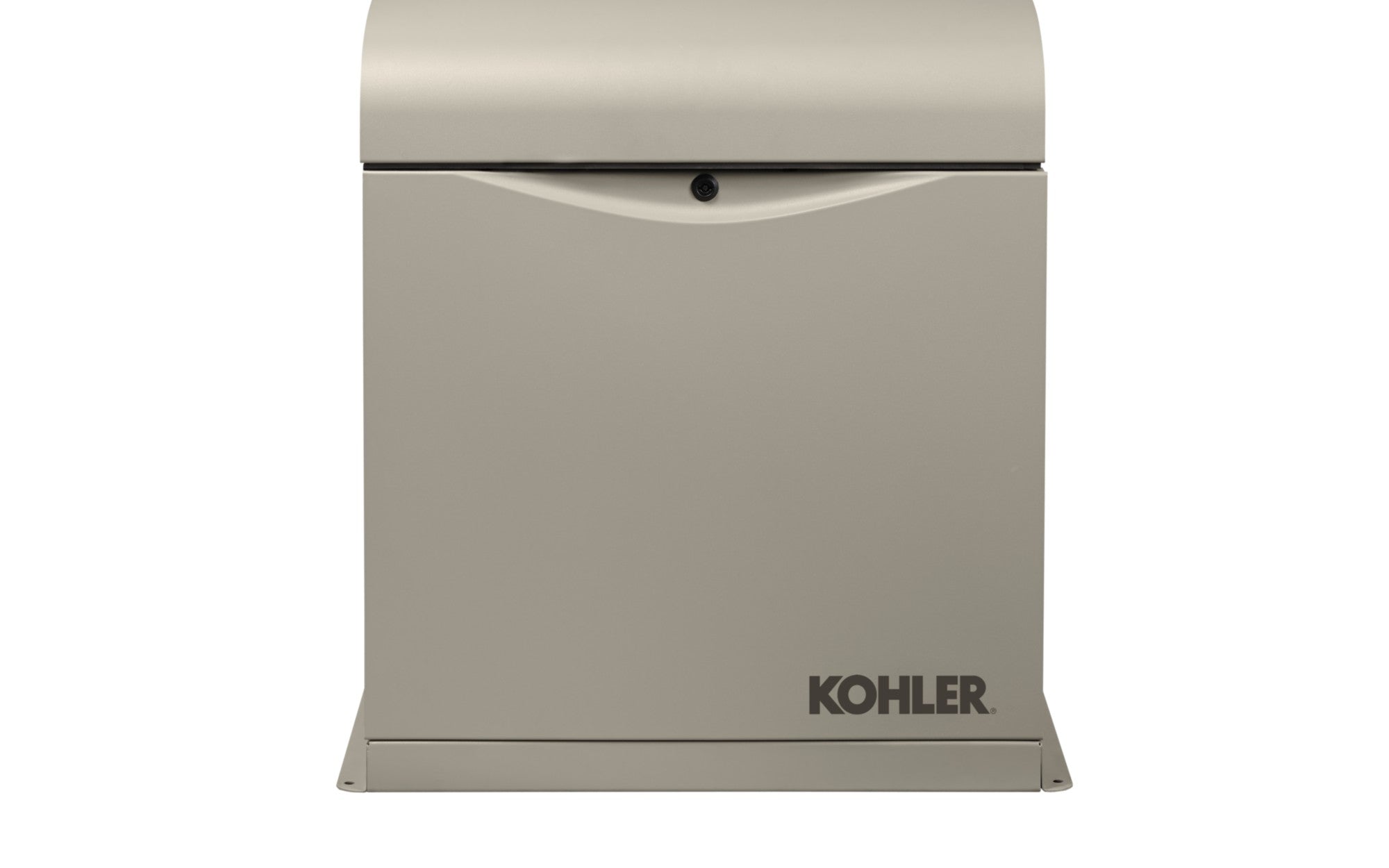

Kohler 12RESVL-100LC12 12KW Standby Generator with 100 Amp Automatic Transfer Switch and App Connect New

Manufacturer: Kohler

SKU: 12RESVL-100LC12

Kohler 12RESVL-100LC12 12KW Standby Generator with 100 Amp Automatic Transfer Switch and App Connect New
Kohler 12RESVL-100LC12 12KW Standby Generator with 100 Amp Automatic Transfer Switch and App Connect New
Kohler 12RESVL-100LC12 12KW Standby Generator with 100 Amp Automatic Transfer Switch and App Connect New
Kohler 12RESVL-100LC12 12KW Standby Generator with 100 Amp Automatic Transfer Switch and App Connect New
Kohler 12RESVL-100LC12 12KW Standby Generator with 100 Amp Automatic Transfer Switch and App Connect New
Kohler 12RESVL-100LC12 12KW Standby Generator with 100 Amp Automatic Transfer Switch and App Connect New

QTY

(888) 999-1522

$ 4,305.00

+
shipping box
FREE Shipping
×

This item ships for free. Freight shipments include liftgate at no additional charge.


or

Pay Over Time

Select Bread as your payment at checkout

in stock checkmark

In Stock

tags

ON SALE!

delivery truck icon

Current special - Add to cart to see lower price

Ships in (est) 3-8 business days

headset icon

Exceptional Customer Service


headset icon

Authorized Dealer

Shopper Award
FactoryPure BBB Business Rating: A+
Kohler 12RESVL-100LC12 12KW Standby Generator with 100 Amp Automatic Transfer Switch and App Connect New

Kohler 12RESVL-100LC12 12KW Standby Generator with 100 Amp Automatic Transfer Switch and App Connect New

Product Overview

Our generators for backup power provide reliability and performance. When you lose power during an outage or storm, a hard-working 12 kW KOHLER® generator keeps your appliances working, the heat or AC running and your security system on. OnCue® Plus Generator Management System is standard with every RESV or RESVL generator.

vendor logo
divider
authorized dealer
checkmark

5 year comprehensive warranty

checkmark

Remote Monitoring

checkmark

Brand new in box

checkmark

Free shipping

checkmark

Works with liquid propane or natural gas

checkmark

Authorized Kohler dealer

Features

  • Kohler generators provide advanced voltage and frequency regulation along with ultra-low levels of harmonic distortion for excellent generator power quality to protect your valuable electronics
  • The Kohler 12 kW generator can easily start and run a 5 ton air conditioner with up to 5 kW preload. Based on generator and load size
  • Kohler is known for extraordinary reliability and performance and backs that up with a 5-year or 2000 hour limited warranty
  • Bold new Kohler design in steel, dipped in e-coat for extra corrosion protection and painted with a durable powder coat finish
  • Get real-time alerts on the status of your generator, thanks to the continuous monitoring done by the KOHLER® Energy Management App.
  • Comes with an RXT 100-amp indoor-rated automatic transfer switch with 12-space load center
  • Extraordinary peak motor-starting capacity: 12RESVL at 16.8kVA at 240V
  • Compatible with Programmable Interface Module (PIM)
  • Premium power quality delivers exceptional digital voltage and frequency regulation along with low levels of harmonic distortion to protect sophisticated electronics
  • Powered by reliable KOHLER Series 7000 V-twin engine with efficient OHV design. operation speed is 3600 rpm (the standard for air-cooled generators)
  • Also compatible with Load Control Module (LCM) with single-phase generators only
  • PowerBoost™ technology provides power to start large loads such as central air conditioners without dropping power to other appliances
  • Accepts natural gas fuel pressure as low as 3.5 inches
  • Quiet, neighborhood-friendly operation with sound levels similar to a typical central air conditioner
  • Meets 181 mph wind rating
  • Runs on either natural gas or liquid propane (LPG) with simple switching between natural gas and LPG in the field

Specifications

Fuel Consumption on NG at 50% load 128 cfh
Fuel Consumption on LP at 50% load 57 cfh
Controller RDC2 Controller
Cylinder Arrangement V-2
Dimensions 777 mm x 712 mm x 824 mm (30.6 in. x 28 in. x 32.4 in.)
Engine Manufacturer/Description Kohler
Engine Model KT725 1.9L, 4-Cycle
Engine/Alternator RPM 3600
Fuel Type LPG, Natural Gas
Frequency 60 Hz
Phase Single Phase
Voltage @ 60 Hz 120/240
Digital Voltage Regulation ±1.0%
Built in Mounting Pad Yes
Model 12RESVL
Rated kW LP 12 kW
Rated kW NG 11 kW
Amps LP 50.0 amps
Amps NG 45.8 amps
Peak Motor Starting kVA @240 V 20.3 kVa
Alternator Note All information shown is for 1 Phase 60 Hz generator with the largest alternator option available.
Displacement 725 cm³ (44 cu. in.)
Horsepower NG 18 HP, LP 21.4 HP
Enclosure Material Steel
Sound Output During Weekly Exercise 67 dB(A)
Sound Output During Full-speed Operation 71 dB(A)
Response Time 10 seconds
Warranty Premium five-year limited warranty
Country of Origin US
Certifications/Listings UL 2200,EPA
Automatic Transfer Switch Included Included
Remote Monitoring Available KOHLER® Energy Management App
Off Grid / Utility Backup Utility Backup
Weight 489 lbs. (222 kg)
Alternator Type 2-Pole, Rotating Field

Package Contents

Kohler 12RESVL-100LC12 Standby Generator

100 Amp Automatic Transfer Switch

User Manual

Warranty
