Cummins A061C591 13kw Quiet Connect™ Series Home Standby Generator LP/

Cummins A061C591 13kw Quiet Connect™ Series Home Standby Generator LP/NG New

Model: Cummins
SKU: A061C591
No reviews

Quantity

319900

In Stock

/ 872 Sold

Manufacturer Direct Shipping

Please allow 3-5 business days for processing

Free Shipping Options Available
Price Match On Most Items
Manufacturer Direct
Exceptional Customer Service
Free Replacement Shipping

Always Safe and Secure Shopping

Phone Orders: To place an order over the phone or for immediate assistance, please call (888) 978-4993. For after hours sales please call (888) 999-1522.

Overview
Warranty
Reviews
Financing

	Brand new & manufacturer direct
	5 year manufacturer's warranty
	Works with Liquid Propane and Natural Gas
	Authorized Cummins dealer
	Free shipping

OVERVIEW

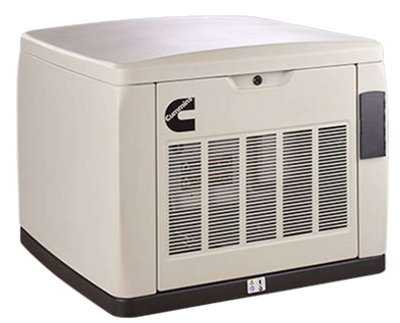

The Cummins Quiet Connect Series 13-18kW Air-Cooled Standby Generator is the perfect power backup during an outage. It is powered by a 999 cc engine which runs from 13 to 20 kilowatts both on natural or propane gas. The engine has a total harmonic distortion of 5% and has the ability to start and run a 5-ton A/C under full preload. It features an air-cooled cooling system with extremely quiet operation at a 65-decibel rating. This generator has the "Crank-Only" mode which reduces wear and tear while saving fuel and reducing noise. This can operate in cold weather out of the box.

With its remote monitoring feature, this can be used on any smartphone, laptop, tablet or desktop computer. It also has intelligent load management which prevents overload problems. On top of that, it has a low oil alert and an hour meter to monitor power and gas consumption in real time. All units require Cummins Automatic Transfer Switch which is sold separately. The A045X497 model comes with a 200 Amp Service Entrance Rated Automatic Transfer Switch.

In addition, this Cummins Quiet Connect Series Air-Cooled Standby Generator is made in the USA. It is tested and certified per the latest EPA emissions, UL and CSA standards. It also meets NFPA 37 which allows the generator to be installed 18 inches from any home. The A045X497 model has a NEMA 3R rating for indoor and outdoor use.

INCLUDES:

13kw generator
Aluminum enclosure

FEATURES:

Cummins Quiet Connect™ Series 13kW Air-Cooled Standby Generator
New for 2017 with improved design, exercise modes, load management & monitoring

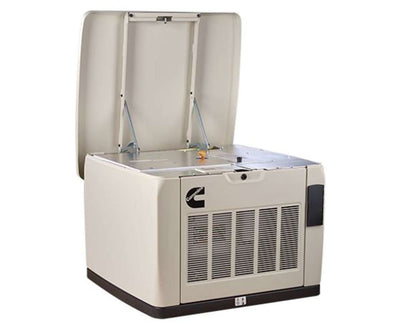

Weather Protective Aluminum/Steel Sound Enclosure
Can be installed* within 18" of a build (NFPA 37) - Always check local building codes
Sound dampening engineering limits noise level to a low 65dB(A) @ 7M
999cc Cummins Air-Cooled V-Twin OHV Engine
Field-selectable, runs on ultra efficient natural gas or LP (vapor)
Low oil pressure shutdown provides added safety and longevity
< 5% THD (Total Harmonic Distortion)
Clean power that won't damage your electronic devices
Patented "Crank Only" Exercise Mode
Provides diagnostics without running engine for less wear and lower fuel costs
Allows user to select time, date and frequency of exercise
Load Management Capability (Requires Load Management Kit - Sold Separately)
Maximizes generator power by intelligently managing up to 4 electrical loads
Cummins Connect Cloud For Remote Monitoring (Mobile App)
Monitor, exercise and manually run the generator
Use your computer, tablet or phone for maximum monitoring flexibility
Cold Weather Equipped
Operates in cold weather with performance down to 0 °F
Cold weather accessories allow for even colder operation (Sold Separately)
Requires Cummins Automatic Transfer Switch (Sold Separately)
Standard 5-Year / 2,000 Hour Limited Warranty

Configuration Options

The Cummins Quiet Connect Series 13-18kW Air-Cooled Standby Generator is available in 4 models with different running power and optional Automatic Transfer Switch. Please select your preference from the drop-down menu above.

A054E399: 13 kW NG / LP
A054E397: 17 kW NG / LP
A054E395: 18 kW NG / 20 kW LP
A045X497: 18 kW NG / 20 kW LP with 200 Amp Automatic Transfer Switch

The Automatic Transfer Switch switch monitors utility power 24/7 independently without any action required by the homeowner. During a power interruption, the switch automatically transfers the load to the generator and when it resumes, the generator sends back the load to the utility.

Please Note: This Cummins standby generator is only compatible with the Cummins RSS Series Single-Phase Automatic Transfer Switch.

Item Number	A054E399	A054E397	A054E395	A045X497
Running Power (Natural Gas)	13 kW	17 kW	18 kW	18 kW
Running Power (Liquid Propane)	13 kW	17 kW	20 kW	20 kW
Rated Amperage (Natural Gas)	54.2 Amp	70.8 Amp	75 Amp	75 Amp
Rated Amperage (Liquid Propane)	54.2 Amp	70.8 Amp	83.3 Amp	83.3 Amp
Weight	479 lbs	540 lbs	540 lbs	540 lbs
Certification	UL, EPA, CSA, NFPA	UL, EPA, CSA, NFPA	UL, EPA, CSA, NFPA	UL, EPA, CSA, NFPA & Nema 3R
Transfer Switch	Not Included	Not Included	Not Included	Included

SPECS:

Engine

Engine Brand - Cummins Onan

Starting System - 12v Auto Start

CC - 999 CC

Engine RPM - 3600 RPM

Low Oil Alert/Shutdown - Yes

Product Specs

Voltage - 120/240 Single-Phase

Frequency - 60 Hertz

Alternator - Brush

Auto Voltage Regulation - Yes

Surge Watts - 13000 Watts

Rated Watts - 13000 Watts

Fuel Type - LP/Natural Gas

NG Power Capacity - 13000 Watts

LP Power Capacity - 13000 Watts

NG Fuel Consumption @ 50% Load - 195 ft³/hr

NG Fuel Consumption @ 100% Load - 253 ft³/hr

LP Fuel Consumption @ 50% Load - 1.6 gallons/hr

LP Fuel Consumption @ 100% Load - 2.3 gallons/hr

Rated Amps - 54.2 Amps

Decibel Rating @ 7m - 65

Hour Meter - Yes

Voltage Meter - Yes

Transfer Switch - Automatic (Not Included)

Enclosure - Aluminum

Battery - Not Included

Circuit Breaker Size - 100 Amps

A/C Ton Rating - 5-Tons

Cooling System - Air Cooled

UL Listed - Yes

Grade Type - Emergency

Overview

Made in USA - Yes

Product Style - Standby Generator

Product Length - 34.1 Inches

Product Width - 36 Inches

Product Height - 27.3 Inches

Consumer Warranty - 5 Years

UPC - 690781005259

Maintenance
Maintenance Kit	N/A
Recommended Oil	Natural Gas; Propane
Lubrication Method	Engine Oil (Synthetic)

Features
Fuel Shut Off	Yes
Starting Method	12V Automatic
Low Oil Shutdown	Yes
Switch Location	Built-in Display
Automatic Voltage Regulation (AVR)	Yes
Muffler	Quiet Connect
