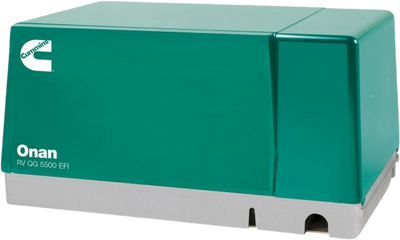

Cummins Onan QG 5500 5.5kW EFI RV Generator 5.5HGJAA-1273 RV Gas Single Phase 120 Volt Air Cooled 30A/30A Breaker New

Manufacturer: Cummins

SKU: A063C083

qg5500efirvgenerator_1

qg5500efirvgenerator_1

QTY

$ 5,292.00

+
shipping box
FREE Shipping
×

This item ships for free. Freight shipments include liftgate at no additional charge.

Sign up for restock notifications!

Notify Me
headset icon

Exceptional Customer Service

headset icon

Manufacturer Direct

Shopper Award
FactoryPure BBB Business Review

Product Overview

Cummins Onan QG EFI Gasoline powered 5500 watt RV Generator. Includes electronic fuel ignition for maximum performance. Runs two air conditioners with power to spare.

**0541-1002 – must order fuel pump kit for electronic fuel injection. The Electronic Fuel Injection genset may only be installed on motorized chassis equipped to handle the fuel return and evaporative emissions. Current emissions regulations prevent adding a return port to any fuel tank not specifically manufactured to accommodate our fuel injected genset.
vendor logo
divider
authorized dealer
checkmark

3 year factory warranty

checkmark

Brand new in box

checkmark

Gasoline powered

checkmark

Authorized Cummins dealer

Cummins Onan QG 5500 5.5kW EFI RV Generator 5.5HGJAA-1273 RV Gas Single Phase 120 Volt Air Cooled 30A/30A Breaker New

Cummins Onan QG 5500 5.5kW EFI RV Generator 5.5HGJAA-1273 RV Gas Single Phase 120 Volt Air Cooled 30A/30A Breaker New

Features

  • Electronic fuel injection, industry first for maximum performance
  • Quietest generator set in its class
  • Exceptionally low vibration levels
  • Integrated design with enclosed muffler for easy installation
  • Self-diagnostic capability to simplify troubleshooting
  • Runs two air conditioners with power to spare (up to two 13500 Btu A/C with 2500 watt baseload)
  • Digital voltage regulation for stability as appliance loads change
  • Circuit breakers: (2) 30A
  • 3-year limited warranty, lifetime drive warranty

Specifications

Vibration IsolatorsYes
Battery For Electric StartNot Included
Warranty3 Year (Limited)
Weight (Lbs.)288
Ship Weight (Lbs.)338
Operating Weight (Lbs.)288
Dimension No Wheel Kit22.2"W x 33.6"L x 16.7"H
Agency ComplianceCARB (California), EPA, National Park Approved
Surge Start Watts5,500.0
Continuous Rated Watts5,500.0
Prime Rating Watts5,500
PhaseSingle-Phase
Voltage120
Rated Amps @ Min Volt (Commonly 120v)45.8
Frequency60 Hz
Power Factor1.0
AlternatorBrush
Voltage Regulation0.6%
Voltage Regulation TypeDigital
Frequency RegulationLess Than 2 Percent
InsulationClass H
ManufacturerCummins
SKU5.5HGJAA-1273
Model NumberQG 5500
Generator GradeRecreational
Generator StyleRV Generator
Engine/Motor BrandCummins
Engine ModelEH65V
Fuel TypeGasoline
Starting SystemElectric
Horsepower20.0 HP
Engine/Motor TypeAir-Cooled, OHV, 90-degree V-twin, Electronic Fuel Injected
Displacement653 cc
Engine RPM2400 RPM
Generator RPM2400 RPM
Fuel Cons. @ 50% Ld0.6
Fuel Cons. @ 100% Ld0.9
Fuel Induction SystemElectronic Fuel Injection
Lubrication SystemFull Pressure
Engine GovernorElectronic
Operational Volume (dB @10ft)69.0
Operational Volume (dB @50ft)60.0
Auto Fuel Shut-Off ValveYes
Muffler/ExhaustEnclosed Spark-Arrestor
Evaporative Emissions Control Equipped ModelNo, generator is NON-EVAP and is not evaporative emissions compliant. Your generator application/installation requires its own evaporative emissions standards compliance measures.
Altitude AffectedYes

Package Contents

Cummins Onan QG 5500 Gas Generator

User's manual

Warranty

vendor logo
divider
authorized dealer

This item comes with a 3 year factory warranty.
