MRCOOL Ductless Mini-Split Air Conditioner & Heater DIY Complete System 24K BTU 208-230V/60Hz 4th Gen New
Product Overview
The MRCOOL® 4th Generation DIY 24K BTU, 20.5 SEER Ductless Heat Pump is an all in one system. This system can offer a 20.5 SEER efficiency rating that has allowed it to achieve an Energy Star certification and can heat & cool an area up to 1,000 sq. ft. It also features durable construction and a corrosion-resistant Gold Fin condenser. This simplicity is achieved with the use of the patented MrCool Pre-Charged Quick-Connect Line Set included with the system.
It is also equipped with up to six operating modes, which include AUTO, HEAT, COOL, FAN-ONLY, DRY (dehumidification), and SLEEP. The system’s Follow Me Feature allows the system to adjust the room temperature based on wherever you’re standing with the hand-held remote control.
Brand new in box
7 year limited factory warranty
Manufacturer direct shipping from KY & NV
Fast shipping
Authorized MRCOOL dealer
Features
- Up to 20.5 SEER2

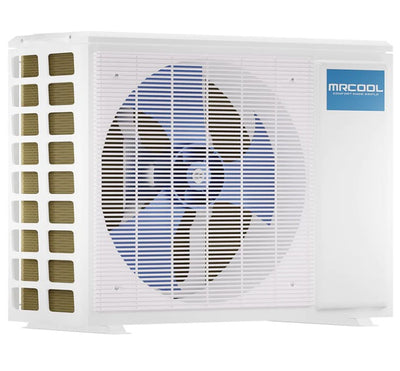

- Gold Fin® condenser: corrosion-resistant coastal living - don't worry, our condenser is built to resist long term corrosion
- Variable-speed DC inverter compressor technology cuts operating costs
- R-410A environmentally friendly refrigerant
- Standard 7-year compressor/5-year parts warranty; register for limited lifetime compressor warranty
- This system also has the ability to be controlled with a smartphone by way of the Smart HVAC app
Specifications
| Decibel Rating High | 48.5 dBA |
| Oscillation | 4-W |
| Inverter | Yes |
| Min Ambient Cool | -13F - 122F |
| Min Ambient Heat | -13F - 75F |
| Line Set Length | 25ft |
| Max Lineset Length | 98.42 ft |
| Liquid Line Size | 3/8 in |
| Suction Line Size | 5/8 in |
| Compressor Motor Type | Twin-Rotary |
| Condenser Fan Motor RPM | 850/750/700 |
| Blower Motor RPM | 1200/1000/700 |
| Auxiliary Heater Available | No |
| Modes | Fan Only |
| Quiet Mode | Auto Cool |
| Wifi Compatibility | Yes |
| App Compatibility | Yes |
| Compatible with | IOS |
| Android | Includes |
| Remote | Batteries |
| Certifications | UL Listed |
| Energy Star | AHRI |
| Registered Warranty | 7 Years Replacement on Condenser, 5 Years Parts |
| Condenser Dimensions | 37.24"W x 16.14"D x 31.89"H |
| Condenser Weight | 125.22 lbs |
| Air Handler Dimensions | 42.52"W x 8.90"D x 13.19"H |
| Air Handler Weight | 35.27 |
| SEER2 | 20.50 |
| EER2 | 12.50 |
| SEER | 20.5 |
| EER | 12.5 |
| COP 47 | 3.15 |
| HSPF | hspf4/hspf5 : 10.5/9 |
| HSPF2 | 9.20 |
| CFM | 605.88/505.88/364.71 |
| Tonnage | 2 |
| Cooling Capacity | 23,000BTU |
| Heating Capacity | 25,000 BTU |
| Voltage | Requires a minimum of 208-230V/60HZ/22-35A (please check your home meets this electrical requirement prior to purchase) |
| Phase | 1 |
| Cycle | 60 Hz |
| Max Fuse Breaker | 35 A |
| Min Circuit Ampacity | 22 A |
| Color | White |
| Rate Load | 0.45 A |
| Max Coverage Area | Up to 1000 sqft |
| Zone Capacity | 1 |
| Refrigerant Type | R-410A |
| Refrigerant Volume | 81.13 oz |
| Decibel Rating | 48.5/43.5/33 |
| Decibel Rating Low | 33 dBA |
Package Contents

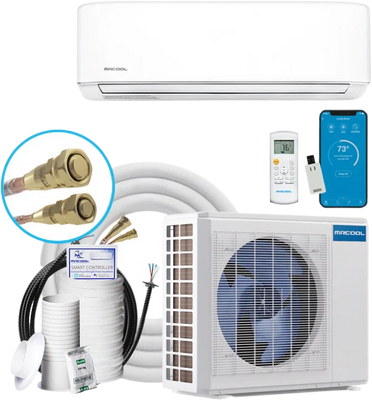

DIY 24K BTU Ductless Mini Split Heat Pump Complete System
User Manual
Warranty
This product comes with a 7 year compressor warranty and a 5 year parts warranty.
